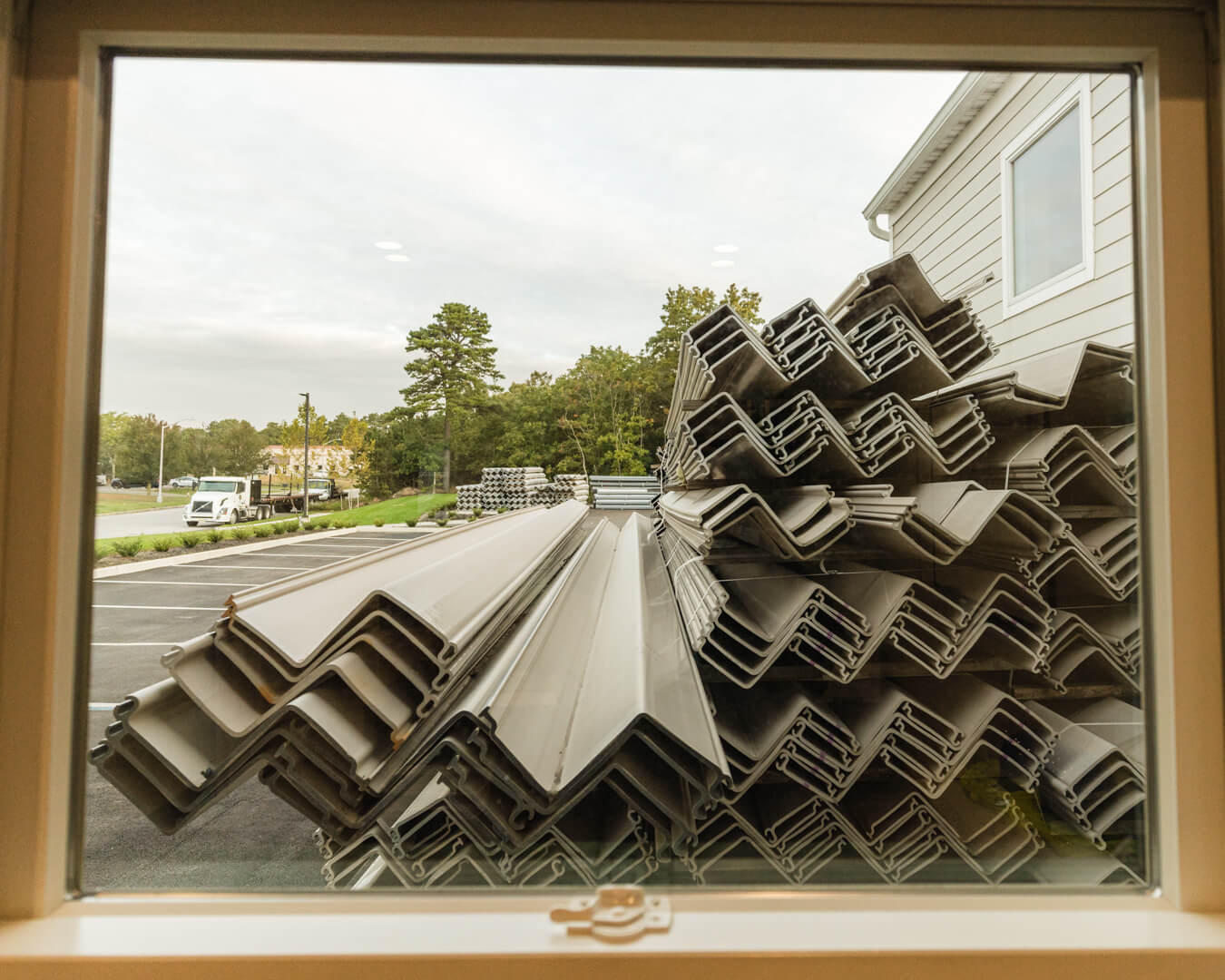

Reliable interlocking Vinyl Seawall sheet piling for residential and light marine seawall projects.
Versatile performance and lasting protection for everyday marine environments
Crafted with recycled vinyl sheets Durable Cost-Effective Environmentally Friendly UV Stabilized Impact Resistant PVC Section Modulus 87.93 in⁴/ft| Material | Exterior Grade Rigid Vinyl Seawall |
| Section Width (W) | 18 inches (457 mm) |
| Section Depth (D) | 9 inches (229 mm) |
| Section Thickness (T) | .330 inches (8.38 mm) |
| Moment of Inertia | 87.93 in⁴/ft (12,008 cm⁴/m) |
| Section Modulus | 87.93 in⁴/ft (1,050 cm³/m) |
| Ultimate Moment | 10,584 ft-lbs/ft (4,860 kg-m/m) |
| Allowable Moment | 5,292 ft-lbs/ft (2,430 kg-m/m) |
| Tensile Strength (ASTM-D6338) | 6,500 lbs/in² (44.8 Mpa) |
| Flexural Strength (ASTM D790) | 10,200 Psi (70.3 Mpa) |
| Modulus of Elasticity (STM-D790) | 380,000 Psi (2,620 Mpa) |
| Notched Izod Impact (ASTM-D256) | 13.75 lbs/in (2.46 kg/cm) |
| Heat Deflection Temperature (ASTM-D648) | 158°F (70°C) |
Marinas
Ports
Shoreline
Protection
Marine
Infrastructure
Residential
Waterfront
Vanguard VINYL SEAWALL systems are backed by a long-term performance warranty designed for harsh marine environments and shoreline conditions.
